Harmony MRI Entertainment

MRI Entertainment display thru scanner 350

Allow your MRI participants to enjoy audio-visual entertainment during their scan.

Simply play your media on an tablet in the control room. Video is displayed on an MRI compatible 32" LCD display placed in the exam room, with sound routed into your existing scanner headphones via the technologist intercom system.

Entry level system includes:

  • 32" in-room LCD display & trolley
  • Audio Visual Interface Hub (AVI)
  • iPad with stand and Digital AV adapter
  • In-bore mirror and pillow

Guide Price: £19500

SKU: M0134

Advanced AVI Hub features

A simple setup is perfect for most situations, but you may want to take advantage of the AVI Hub's additional features to create a highly flexible audio-visual system for your MRI exam room.

Input options

In addition to (or instead of) a tablet, you can connect a total of 4 HDMI sources and one DisplayPort source to the AVI Hub and switch between them at the touch of a button. For example:

  • Computers or laptops with HDMI or DisplayPort output (or USB C with a suitable adapter).
  • A Blu-ray Disc player or DVD player with HDMI output.
  • A streaming media device with HDMI output.

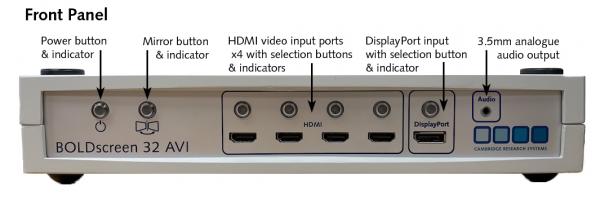

BOLDscreen 32 AVI labelled front

Clone monitor

A second monitor can be connected to monitor the BOLDscreen image from the control room. The rear of the AVI has a clone HDMI output for this purpose. This clone output is identical to the main output and produces video at 1920x1080 @ 120Hz. We have tested the clone output with 24” ViewSonic XG2401 and XG2402 LCD monitors – other desktop LCD monitors should work too if they can support 1920x1080 @ 120Hz via HDMI 2.0, or DisplayPort using an HDMI 2.0 to DisplayPort cable.

Audio amplifier and headphone options

Instead of using the scanner intercom, the rear of the AVI provides an S/PDIF audio output which can be connected with an optical fibre (Toslink) cable to an alternative MRI headphones amplifier.  For high quality audio and a range of headphones and earbud options, we suggest the BOLDfonic amplifier.

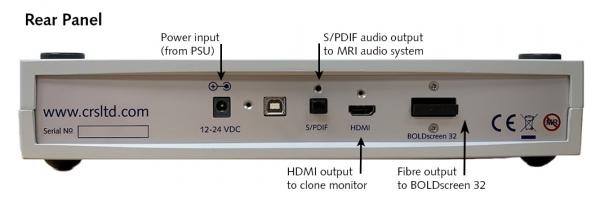

 BOLDscreen 32 AVI labelled rear



AVI I/O details
  • 1920x1080 @ 120Hz output, via fibre connection appropriate for connecting directly to BOLDscreen 32.
  • 1920x1080 120Hz output via HDMI 1.4, suitable for connecting to a monitor in the MRI control room.
  • S/PDIF audio output for connection to MRI audio systems.
  • Four HDMI inputs.
  • One DisplayPort input.
  • All inputs accept resolutions of 640x480 up to 1920x1080 at frame rates between 50 and 120Hz.
  • One input source can be shown on the BOLDscreen at any one time.
  • Remote control of BOLDscreen mirror-mode and low-power features.


100px-MRunsafesign.svg.pngThe BOLDscreen32 AVI Hub is categorised as MR unsafe. It must be situated outside of the magnet room.
